Scanned line art
You can try a sharp scan with a simple background and a complete visible outline.
JPG to DXF converter online
This JPG-to-DXF converter is for original or high-quality JPG/JPEG files with clear edges. It suits line drawings, logos, templates, and high-contrast graphics; crop empty margins and avoid repeated compression before tracing.
From JPG pixels to DXF contours
Format visual
Clear edges and contrast make the pixel-to-contour conversion easier to review.
JPG / JPEG input
One-step fixed preset
10 credits · failure refunded
Files kept for 7 days
Result example
Format examples
JPG to DXF: from scan or linework to contour
This JPG self-test keeps the scan or paper-pattern context while making the source and traced contour easier to compare. It demonstrates a general JPG-to-DXF draft path; actual results still depend on compression, contrast, and edge quality.
COMMON USES
Input scenes you can try
These are common uses, not an exhaustive list. If the target outline is clear, upload it first to inspect a real preview.
The cards show input ideas, not guaranteed results. Upload your own file to inspect the real preview.
High-contrast logo
You can try an original or lightly compressed JPG logo with bold edges and limited texture.
Simple drawing or diagram
You can try a simple JPG drawing or diagram when the important boundaries remain visible.
Before you upload
Check whether this source is a good tracing candidate
The converter traces visible pixels into paths. This quick check prevents spending credits on images that need cleanup or a different workflow.
Good to upload
- An original or high-quality JPG line drawing, logo, diagram, or graphic with sharp contrast and a plain background.
- A JPG whose important outline is fully visible and not blended into a similar-colored background.
Avoid or prepare first
- A screenshot repeatedly saved as JPG, where compression blocks or ringing are already visible around edges.
- A full-color photo with blur, gradients, dense texture, shadows, or many small details.
JPG note: compression artifacts can become extra DXF nodes. Start from the original file, crop empty margins, and increase contrast before retrying.
JPG-to-DXF workflow
Convert JPG to DXF in three steps
Start with the original JPG, inspect the trace, and decide whether the draft is ready for CAD review.
Upload the original JPG
Choose a JPG or JPEG up to 10 MB with a complete outline and simple background.
Review the JPG contour preview
Look for compression noise, blur, and broken edges that could affect the paths.
Download and review in CAD
Confirm scale, curves, closed shapes, and node density before downstream work.
JPG-to-DXF boundaries
JPG compression and photo conditions directly affect tracing; a JPG-to-DXF result remains a contour draft that needs review.
Prefer the original JPG instead of repeated screenshots, shares, or re-saves.
High-contrast, square, simple-background JPGs are easier to trace continuously.
Compression blocks, ringing, shadows, and fine texture can become extra nodes.
Image pixels are not real-world units; calibrate scale and review the geometry in CAD before downstream use.
Technical detailsCAD review metadata pending
Engine version
potrace_fixed_v1
Conversion pipeline

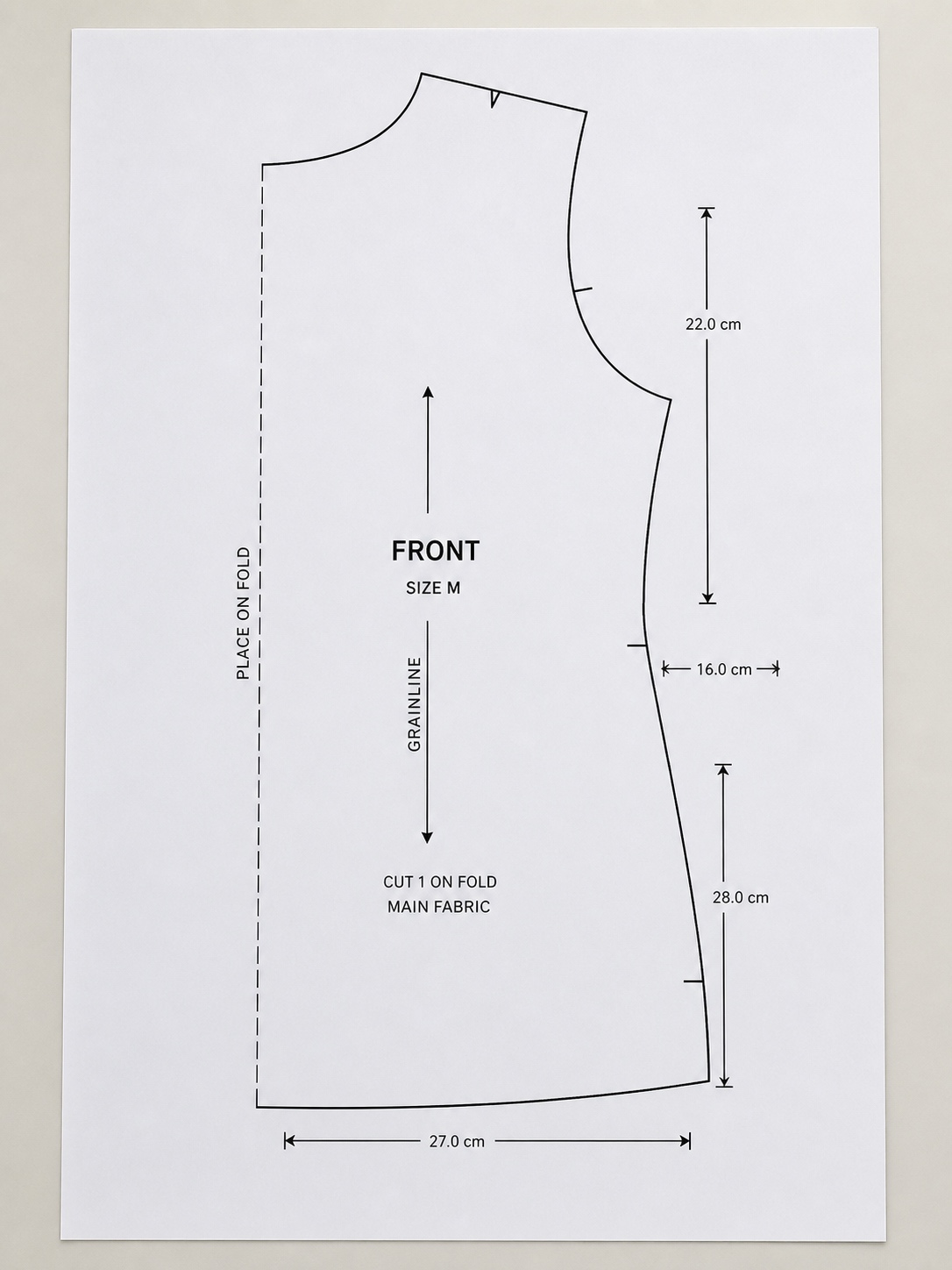

User-supplied garment-pattern bitmap → JPG → Potrace → SVG → DXF
Recorded files

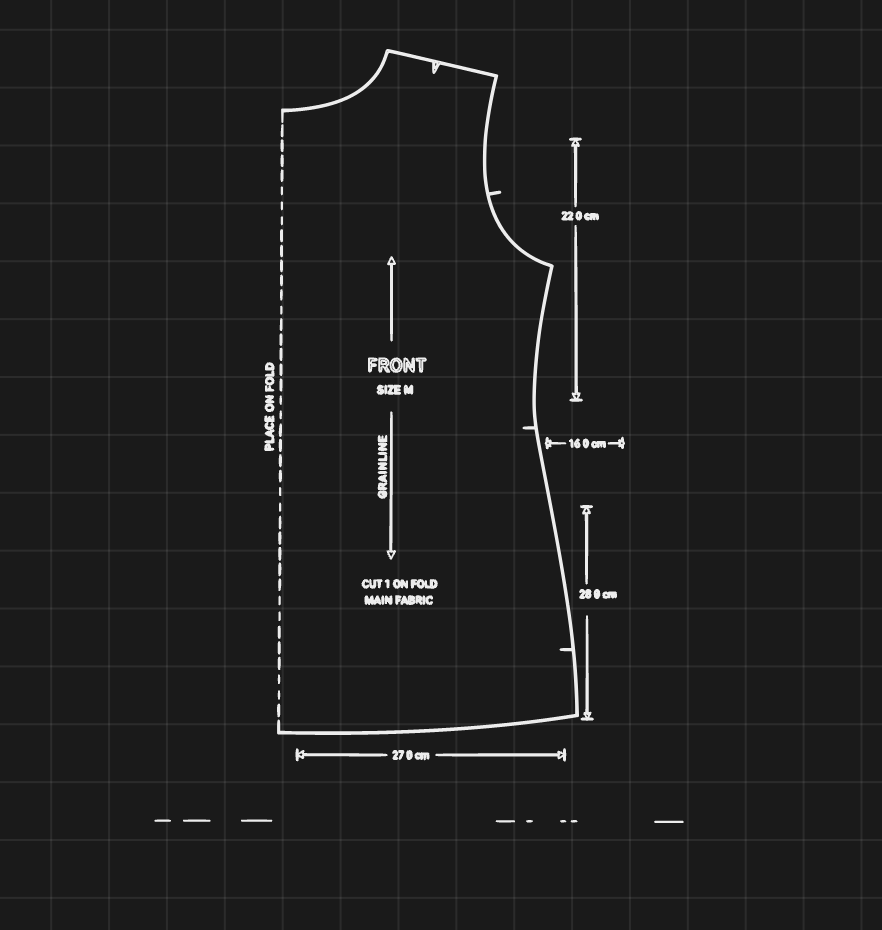

CAD review status
CAD review metadata pending
The CAD software, version, import options, and review conclusion still need to be recorded.
Source explanation
Technical details keep the source conditions and conversion path available for deeper review.
