PNG to DXF converter online
This PNG-to-DXF converter is for logos, icons, line drawings, and clean graphics with separated shapes. Transparent or plain backgrounds can simplify tracing, but inspect the resulting contours before you use the DXF.
From PNG shapes to DXF contours
Format visual
Separated shapes and clear backgrounds make visible edges easier to trace.
PNG input
One-step fixed preset
10 credits · failure refunded
Files kept for 7 days
Result example
Format examples

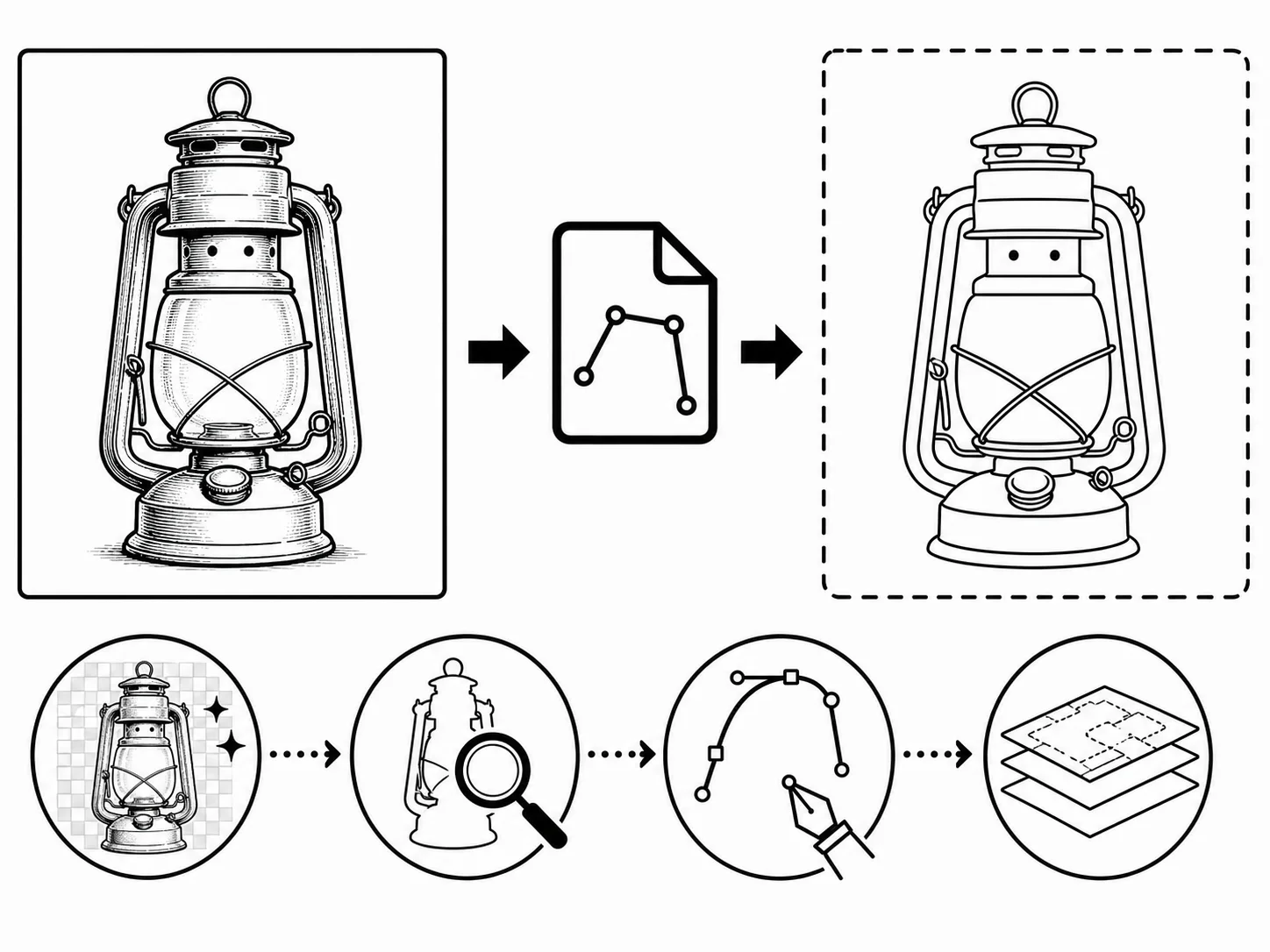

PNG to DXF: from graphic to contour
This PNG example shows how transparent or plain-background artwork enters contour tracing; compare it with the source and review it in CAD.
COMMON USES
Input scenes you can try
These are common uses, not an exhaustive list. If the target outline is clear, upload it first to inspect a real preview.
The cards show input ideas, not guaranteed results. Upload your own file to inspect the real preview.
Icons and simple graphics
You can try separated icons, geometric shapes, or flat-color graphics with little background noise.
Black-and-white line art
You can try a black-and-white drawing where the target contour and necessary inner lines are visible.

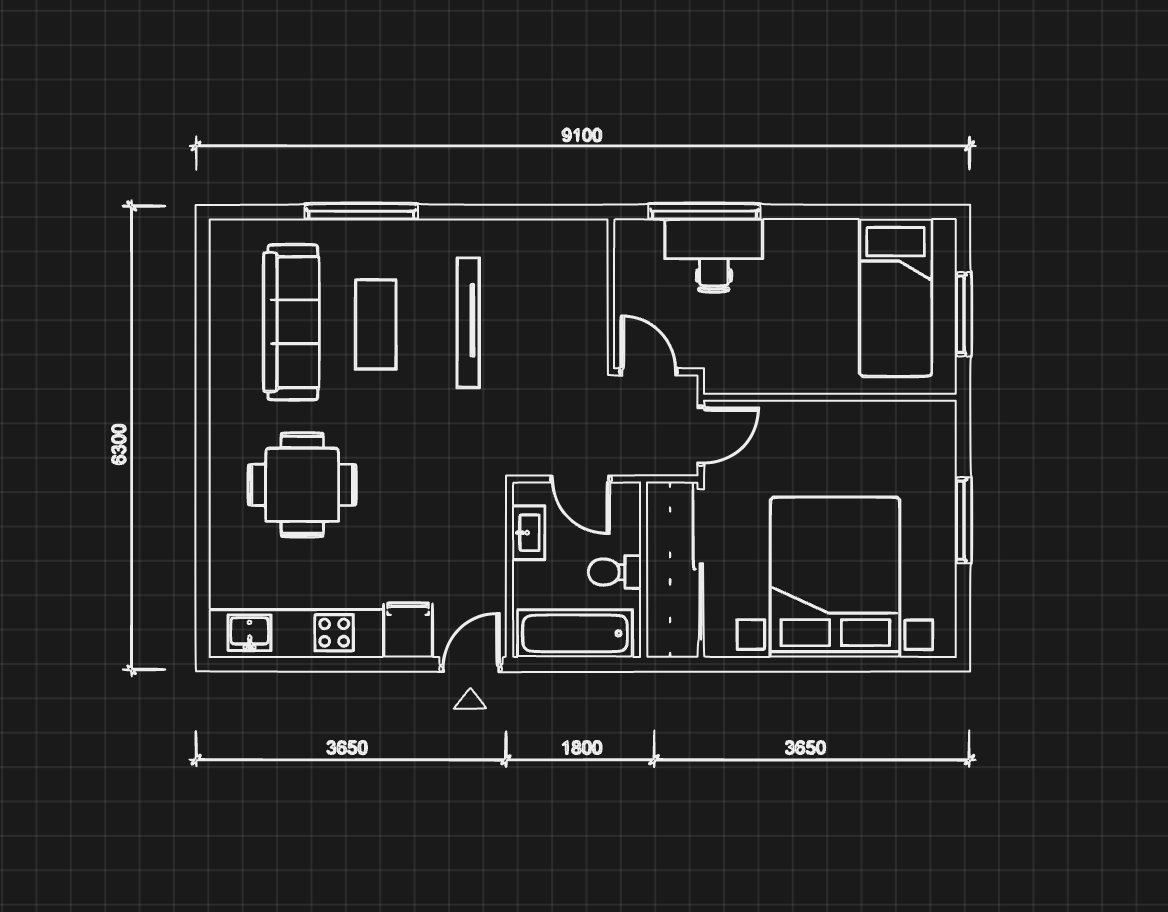

Floor plan or template outline
You can try a clean floor plan or template outline; dimensions and CAD suitability still need separate review.
Before you upload
Check whether this source is a good tracing candidate
The converter traces visible pixels into paths. This quick check prevents spending credits on images that need cleanup or a different workflow.
Good to upload
- A PNG logo, icon, line drawing, or graphic with a transparent or plain background and clear separated shapes.
- A high-contrast PNG where the important outline is thick enough to remain clear at its native size.
Avoid or prepare first
- A PNG with soft shadows, anti-aliased texture, semi-transparent decorative effects, or a busy photographic background.
- A source where exact real-world dimensions are required rather than a pixel-coordinate contour draft.
PNG note: transparent backgrounds often help, but the result still follows visible edge contrast. Inspect the contour preview before you download the DXF.
PNG-to-DXF workflow
Convert PNG to DXF in three steps
Start with a clean PNG graphic, inspect visible edges, and then review the DXF geometry.
Upload a PNG graphic
Choose a PNG up to 10 MB with a simple background and separated contours.
Review the PNG contour preview
Check transparency edges, anti-aliasing, shadows, and small details for extra paths.
Download and review in CAD
Confirm scale, closed shapes, curves, and compatibility before continued use.
PNG-to-DXF boundaries
PNG to DXF traces visible edges; it does not recognize semantic layers, real-world dimensions, or manufacturing information.
Transparent or plain backgrounds are usually easier than busy photographic backgrounds.
Translucent shadows, glow, gradients, and anti-aliasing can create extra contours.
Output follows PNG pixel coordinates and is not automatically converted to real-world units.
Review units, scale, curves, and closed shapes in the target CAD software.
