Image to DXF converter for JPG, PNG, and WebP
Use this general image-to-DXF converter for WebP or when the input format varies. It traces visible contours into a reviewable DXF draft; check scale, curves, and closed shapes in CAD before downstream use.
JPG, PNG, WebP input
One-step fixed preset
10 credits · failure refunded
Files kept for 7 days
Before you upload
Check whether this source is a good tracing candidate
The converter traces visible pixels into paths. This quick check prevents spending credits on images that need cleanup or a different workflow.
Good to upload
- A clean JPG, PNG, or WebP logo, icon, diagram, template, or line drawing with a complete visible outline.
- A simple graphic where you only need the visible contour as a reviewable CAD draft.
Avoid or prepare first
- A garment pattern, scan, or drawing that needs physical millimeters, grading, or production checks.
- A photo with shadows, texture, tiny details, or an unclear background that would create extra paths.
Check after conversion
- Compare the traced preview with the original and look for missing or extra visible contours.
- Open the downloaded DXF in your target CAD workflow to check units, scale, curves, and closed shapes.
Format choice: use the PNG or JPG page when the source format is known; keep WebP on this general entry page.
Use the right source

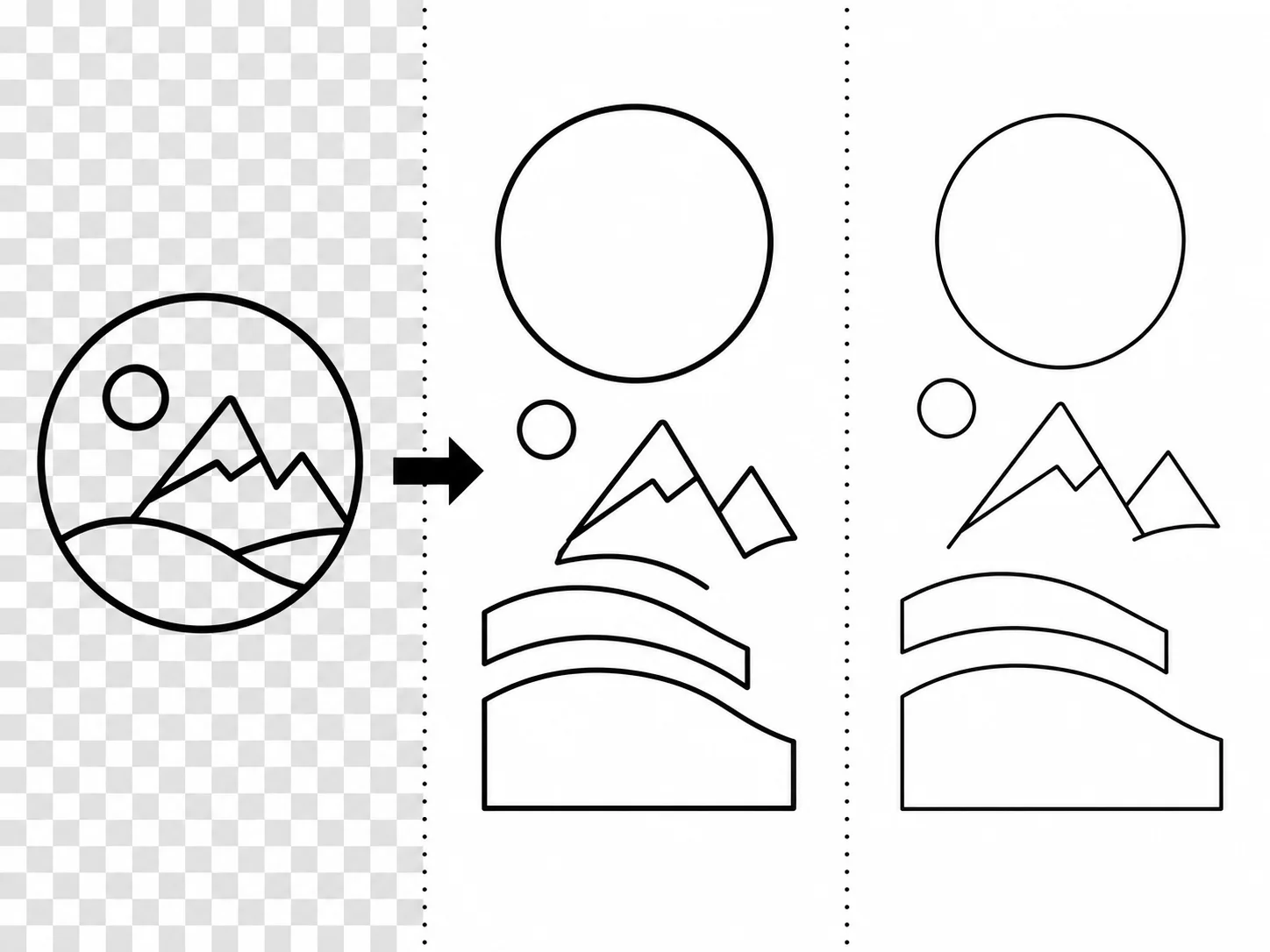

Images that produce cleaner DXF contours
This tool is designed for visible outlines, not hidden geometry. Start with simple artwork and inspect the traced result before using it downstream.
Line drawings and diagrams
Clear edges can be traced, while texture, blur, and shadows may add unwanted contours.
CAD review before use

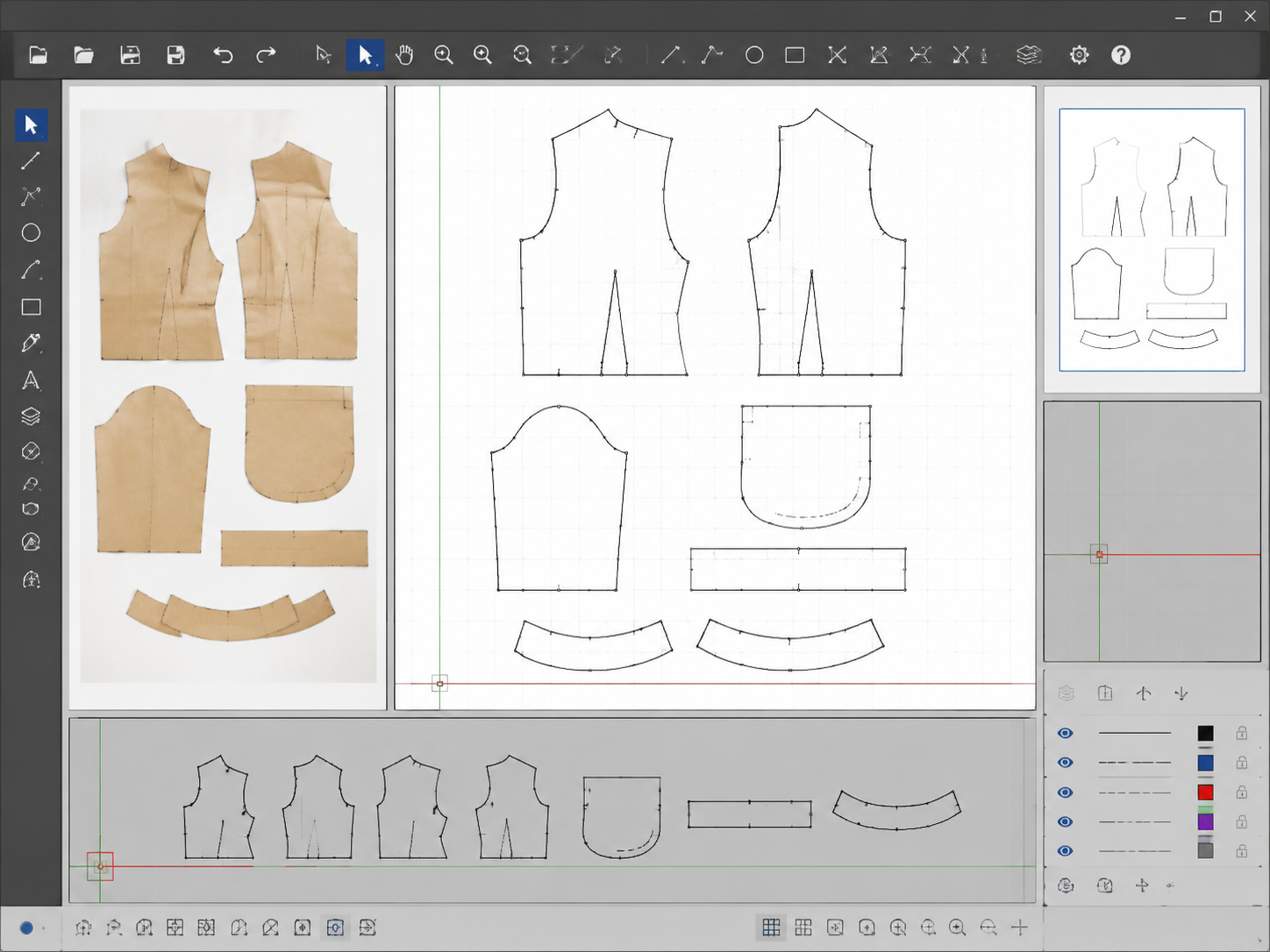

Open the DXF in your target software and check scale, curves, closed shapes, and small details.
Three steps
From raster image to reviewable DXF
The preset stays fixed so the same source produces a consistent tracing workflow.
Upload or paste an image
Choose a JPG, PNG, or WebP up to 10 MB. You can inspect the source preview before submitting.
Trace visible contours
The service converts the raster image to black-and-white paths and generates a real preview with the DXF.
Download and check in CAD
Review the contour preview, download the DXF, then verify the drawing in your target CAD workflow.
What this image-to-DXF tool does — and does not do
The generic converter traces pixels into paths. It does not infer measurements, reconstruct hidden geometry, or turn a photo into a production-ready technical drawing.
Need real sewing-pattern dimensions? Use scan to ET DXFOutput uses the source image's pixel coordinate system, with no automatic millimeter calibration.
High-contrast edges produce cleaner paths; photos and texture can create many extra nodes.
The downloadable DXF contains traced contours, not semantic layers, dimensions, or manufacturing instructions.
Always check scale, curves, closed shapes, and compatibility in the destination software.
Image-to-DXF FAQ
Questions before converting an image to DXF
Choose the right next tool
Clean a noisy image first
Remove background clutter and strengthen the lines before tracing to DXF.
Scan a sewing pattern to ET DXF
Use calibration and pattern-specific checks when physical dimensions matter.
Read the image-to-DXF guide
Learn how raster tracing works and what to inspect after conversion.
Choose by input format
Use the page that matches your source file
Choose the page that matches the source file. Each dedicated tool provides input guidance and checks tailored to that format, while the general page remains the WebP and mixed-format entry point.
